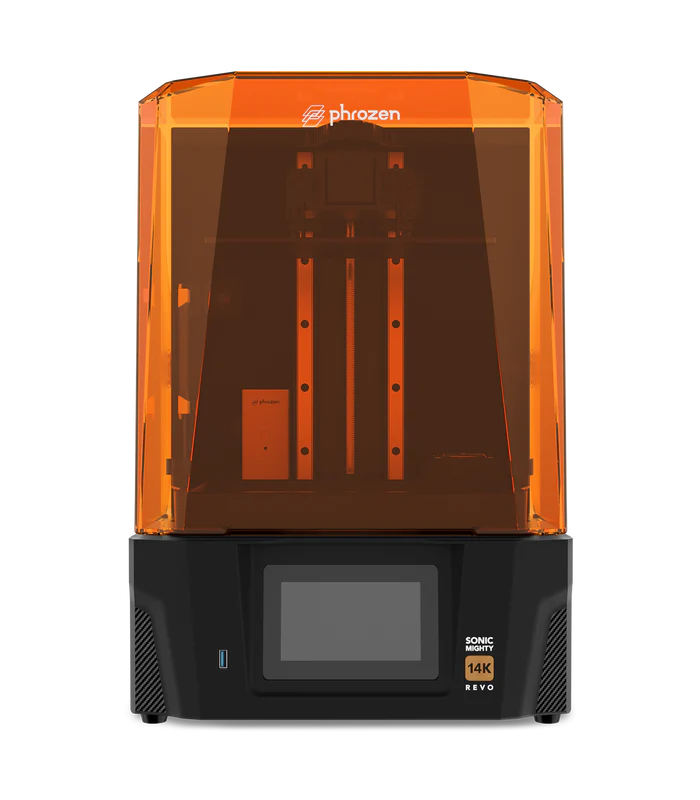

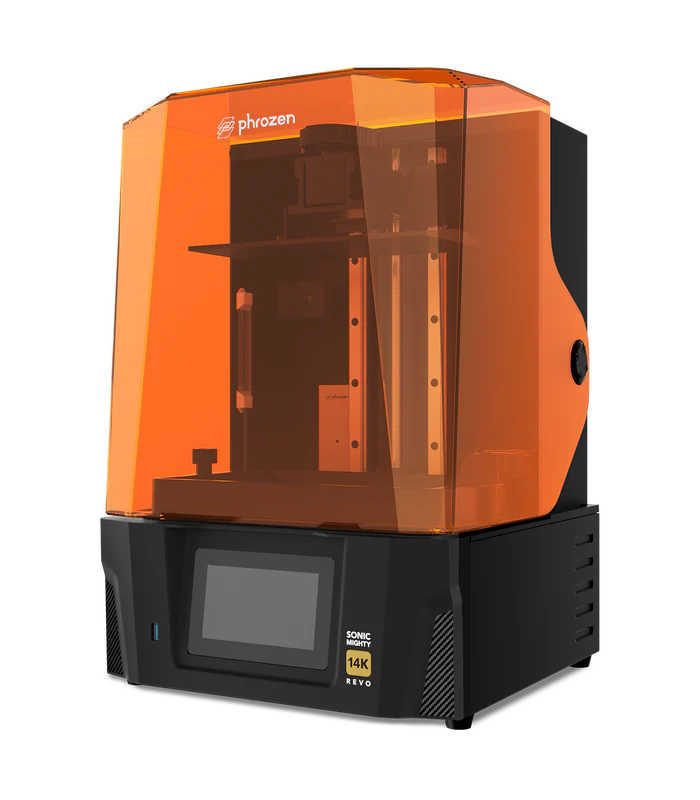

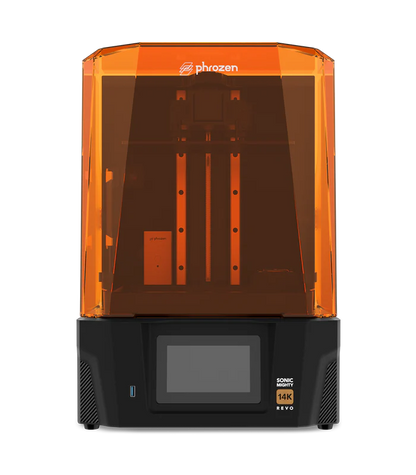

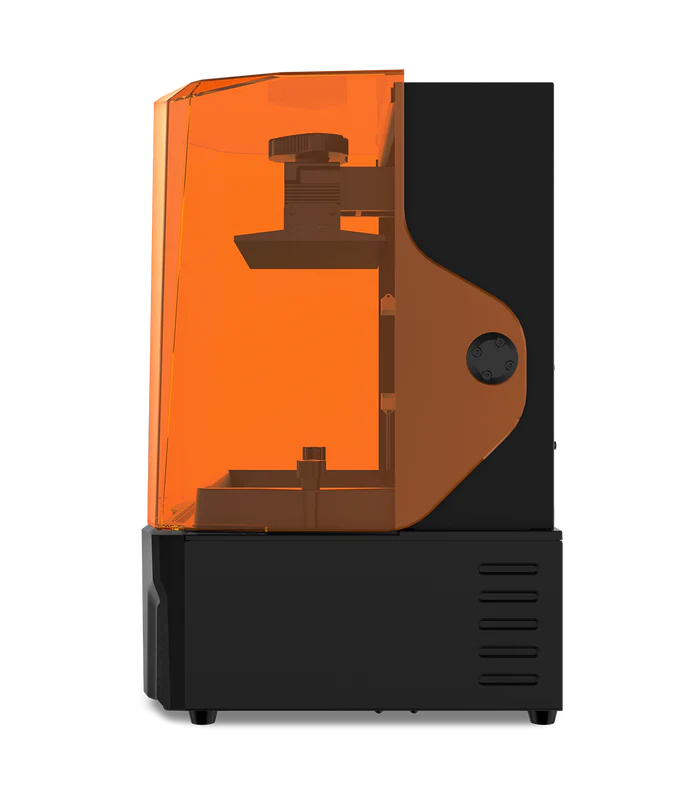

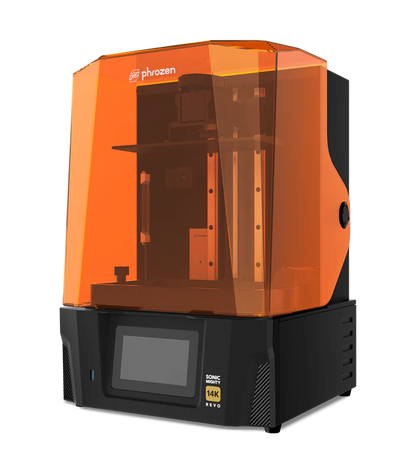

Sonic Mighty Revo: An Extra Layer of Security for a Successful Print

Seamless Mobile Integration and Patented Smart Sensors

Experience the new Revo detection system thanks to our patented 3-point piezoelectric sensor. Integrated seamlessly with the Phrozen GO App, it’s connected 24/7 to your phone for timely monitoring.

● Smart Residue Detection
● Smart Failure Detection
● 24/7 Mobile Connection

| Smart Residue Detection |

Avoid breaking your LCD screen due to cured particles in the vat.
The sensor will cue the printer to stop printing once it detects any foreign objects between the building plate and the release film upon its initial descent.*
_{*The sensors will detect objects ≥ 4mm.}

| Smart Failure Detection |

Get notified of possible failure early in both your printer and your phone (through the Phrozen GO App) when the sensors detect abnormalities during printing.
_{*Notifications will be triggered once sensors detect the complete absence of peeling force for 15 continuous layers, after the building plate is no longer submerged in resin.}

| Keep It Under Control, Even on the GO |

Always have an eye on your prints whenever and wherever you are with a mobile app made specifically for the Mighty. Monitor your print on the go or stop printing upon the earliest detection of failure, all from the palm of your hand.
_{Time-lapse video will soon be available, while the live streaming function will be updated in Q4.}

Performance Enhancement

Avoid the hassle that comes with the trial and error of manual adjustment and environmental changes thanks to Revo’s performance enhancement features.

Smart-Leveling

Calibrate the Z-axis with just a press of a single button, thanks to its automatic zero-point detection sensor. Always start right without the hassle.
*Manual adjustment may be needed if the printer is moved or frequently fails to print.

Sonic Mighty Revo: A Smarter Printer for a Smarter Workflow
With patented auto-levelling, performance-enhancing sensors, mobile-app integration and premium print resolution, the Sonic Mighty Revo is built for serious makers, side-hustlers or high-end prototyping.

Built-in Heater

Resin reaction speed decreases by 30-60% with every 10°celcius drop due to increased viscosity, so a heater enhances success rate by maintaining the most optimum resin temperature.

Reduce Smelly Fumes, Breathe Cleaner Air

Pungent resin odor in your living area can be annoying.

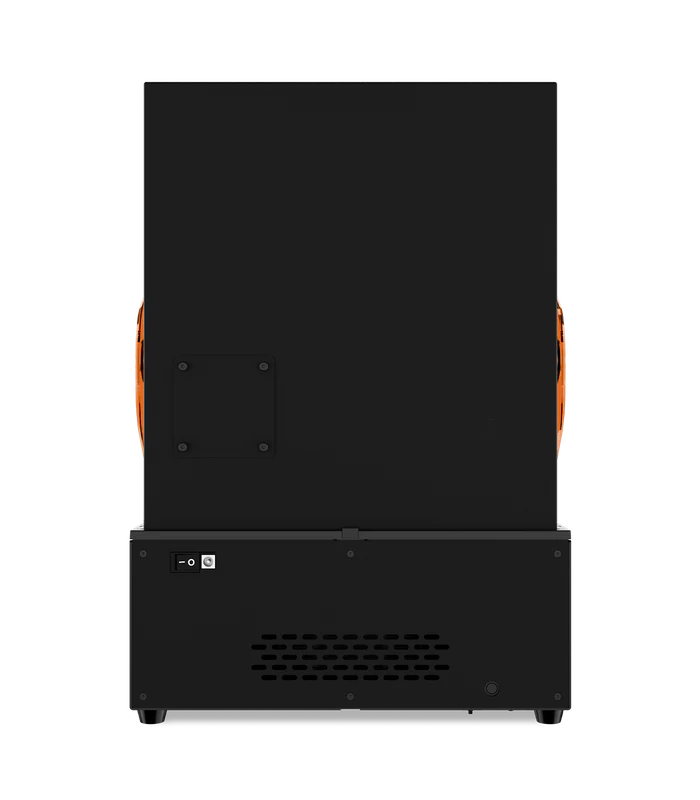

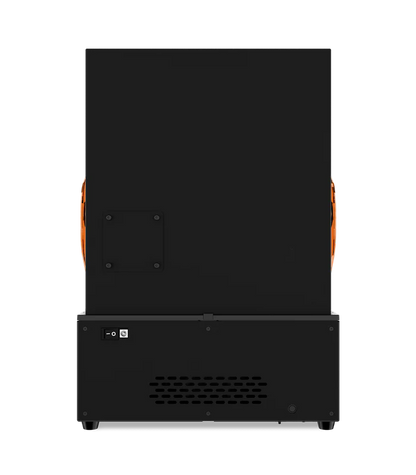

Revo is equipped with an air purifier and built-in exhaust vent, covering your printing needs and ensuring a more enjoyable setting.

User-Friendly Operation

The Sonic Mighty Revo is designed with extra features that will significantly enhance your smart 3D printing experience.

1 Minute LCD Replacement

LCD replacement can be intimidating with lots of screws and cables to handle, but not on the Revo.
Rest assured that when it’s time to ever have your screen replaced, everything is quick and hassle-free.

Sharper | Clearer | Smoother
The Revo Experience

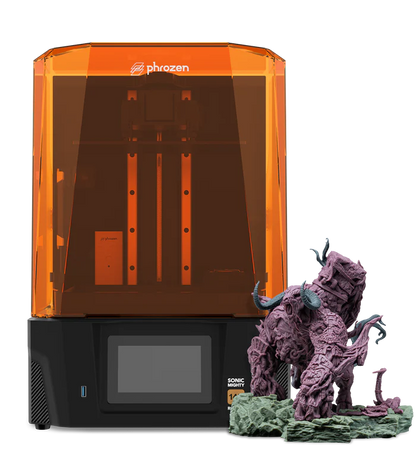

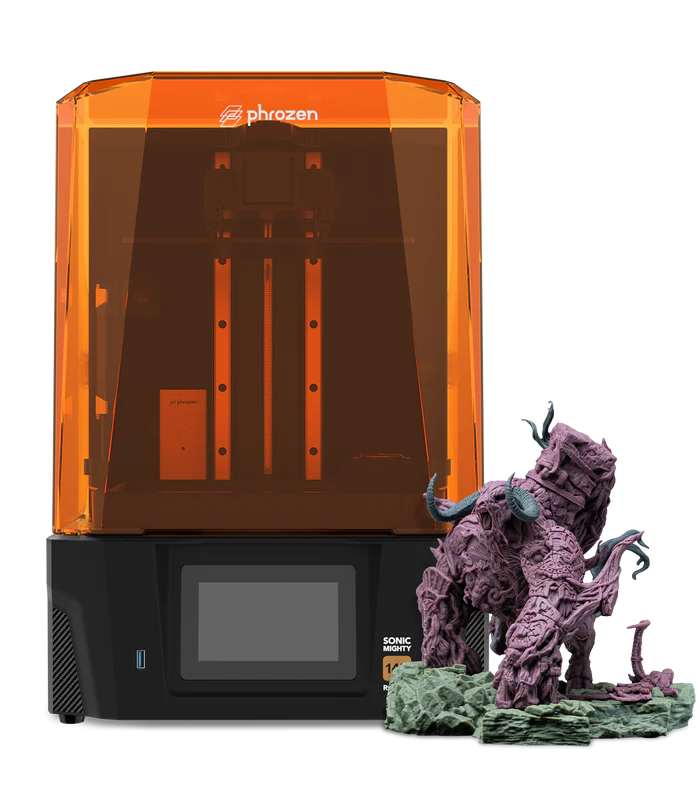

Boasting the 10.1” screen of Phrozen’s Mighty Series size you are familiar with, the Sonic Mighty Revo takes your prints to new heights
with a more uniform light intensity and details up to 16.8 μm x 24.8 μm, almost five times thinner than your typical A4 paper.

Specifically formulated to enhance surface smoothness and detail precision on printer resolutions higher than 8K, the Aqua Hyperfine Resin is here to bring out the best of Sonic Mighty Revo.

Behold the Unmatched Details of Aqua Hyperfine Resin!

Features & benefits:

• Smart Residue Detection: Avoid LCD damage by detecting foreign objects ≥ 4 mm.
• Smart Failure Detection: Connected with the Phrozen GO App for early failures & remote monitoring.
• Built-in Heater: Maintains resin optimal temperature and viscosity for higher success rates. Air Purifier + Exhaust Vent: Cleaner printing environment (esp. indoor/hobby setups).
• 1-Minute LCD Replacement: Simplified service & maintenance.
• High resolution: Up to 16.8 µm × 24.8 µm XY resolution.

Specifications (table or bullet list):

• System: Phrozen OS.

• Operation: 5-inch Touch Panel.

• Slicer Software: CHITUBOX V1.9.6+ (or compatible).

• Connectivity: USB | WiFi.

• Built-in Memory: 8 GB.

• Printing Technology: Resin 3D Printer — LCD Type.

• Light Source: Linear Projection LED Module.

• XY Resolution: 16.8 µm × 24.8 µm.

• Layer Thickness: 0.01–0.30 mm.

• Avg Printing Speed: ~450 layers/hour.

• Release Film: nFEP Film.

• Compatible File Formats: CTB / PRZ.

• Power Supply: 100–240V AC, 50–60Hz.

• Printer Size: 35.3 × 34.5 × 51.7 cm; Weight: 18 kg.

• Print (Build) Volume: 22.3 × 12.6 × 23.5 cm.
